Glass Anti-impact Testing Machine Tempered Glass Impact Resistance Performance Tester Testing Equipment

Brand Name : LONROY

Place of Origin : Guangdong, China

MOQ : 1

Power : 0.75KW

Voltage : 220V

Protection Class : IP56

Shotgun Bag Weight : 45 Kg ± 0.1 Kg

Impact Height : 0 - 1200 mm

Sample Rack Dimensions : 1930 × 864 mm

Power Supply : 220V

Machine Type : Testing Machine

Weight Tolerance : ± 0.1 Kg

Impact Range : 0 - 1200 mm

Motor Power : 0.75KW

Sample Holder Dimensions : 1930 × 864 mm

Electrical Input : 220V

Impact Height Range : 0 - 1200 mm

Bag Weight Accuracy : ± 0.1 Kg

Contact Now

Glass Anti-impact Testing Machine Tempered Glass Impact Resistance Performance Tester Testing Equipment

Product Description

Introduction

The glass anti-impact testing machine is designed in accordance with the technical requirements of GB15763.2. It is used to test the impact resistance performance of building tempered glass, and can also be applied to the impact resistance tests of laminated glass and automotive glass.

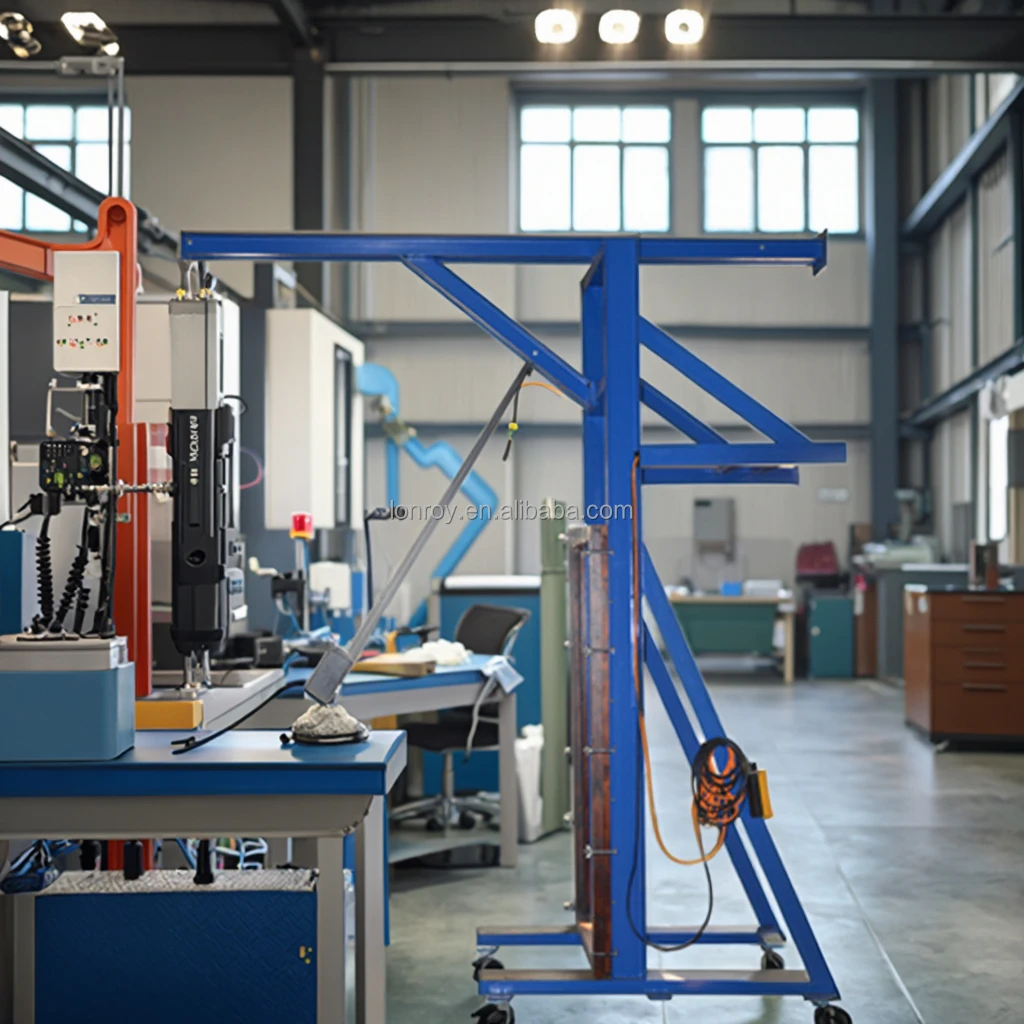

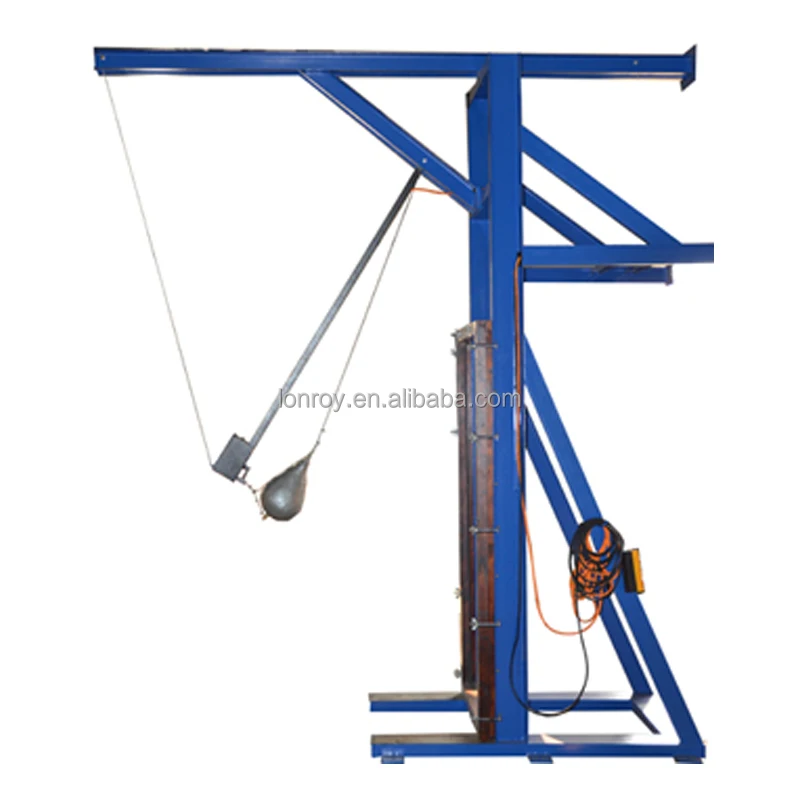

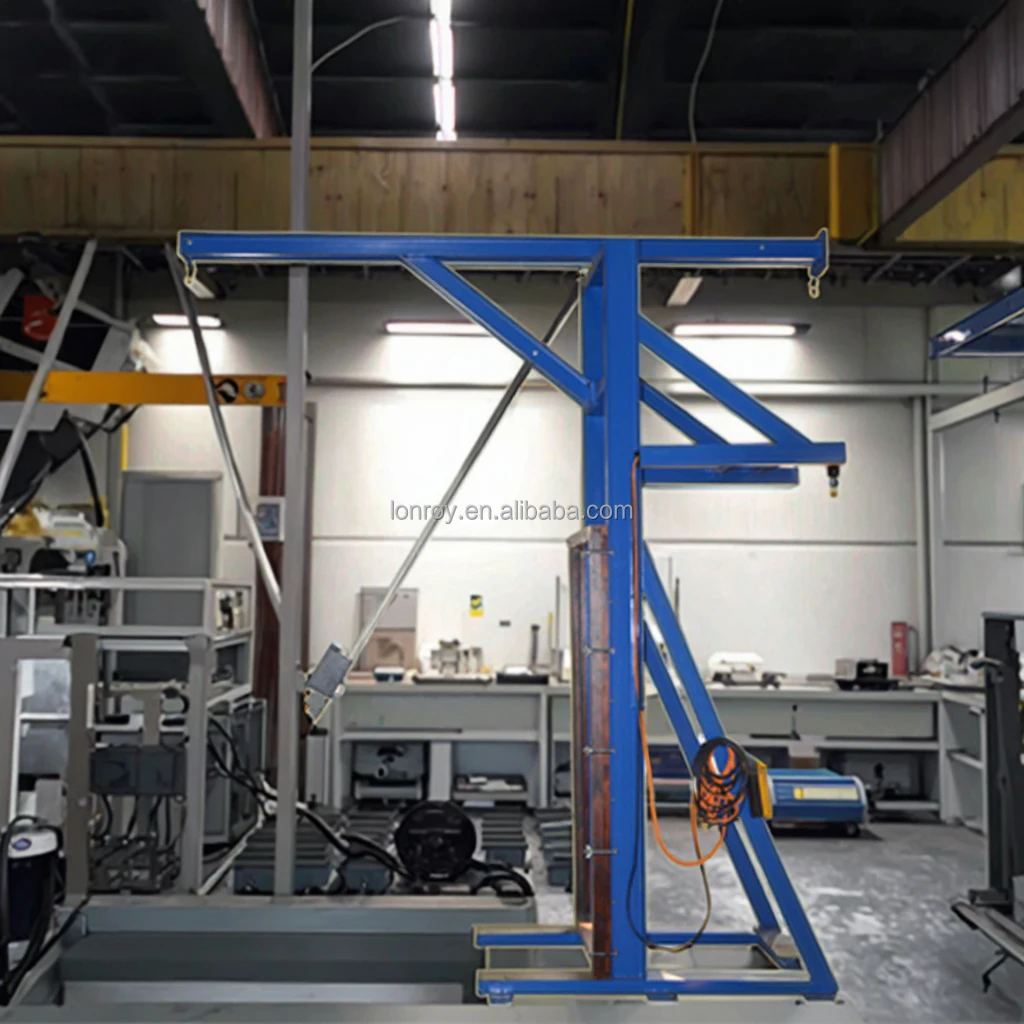

The machine is composed of a sample holder, a shotgun bag and a control box.

The sample support needs to be installed against the wall. The steel wire rope pulls the shotgun cartridge bag to the deceleration motor at the bottom of the lifting frame. The control box controls the lifting mechanism to raise the shotgun cartridge bag to the desired height. After that, the manual control switch is used to release the shotgun cartridge bag to achieve the impact of the pendulum.


Glass Anti-impact Testing Machine Tempered Glass Impact Resistance Performance Tester Testing Equipment

Technical Specification

Weight of Shotgun Bag

45 Kg ± 0.1 Kg

Sample Rack Dimensions

1930 × 864 mm

Impact Height

0 - 1200 mm

Power Supply

220V

Power

0.75KW

Glass Anti-impact Testing Machine Tempered Glass Impact Resistance Performance Tester Testing EquipmentGlass Anti-impact Testing Machine Tempered Glass Impact Resistance Performance Tester Testing EquipmentGlass Anti-impact Testing Machine Tempered Glass Impact Resistance Performance Tester Testing EquipmentGlass Anti-impact Testing Machine Tempered Glass Impact Resistance Performance Tester Testing Equipment
