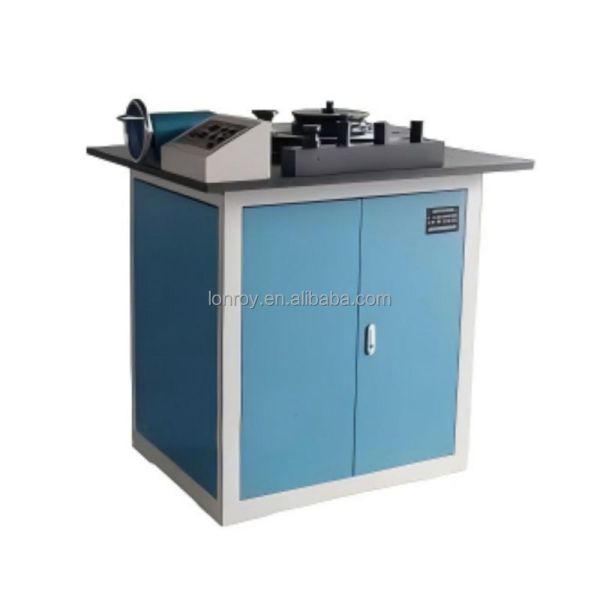

Rebar Bending Testing Machine Steel Bars Forward and Reverse Planar Bending Tester Steel Bar Bending Test Equipment Lab

Name: Rebar Bending Testing Machine Steel Bars Forward and Reverse Planar Bending Tester Steel Bar Bending Test Equipment Lab
Brand: LONROY
Price: 1 USD

Wholesale Rebar Bending Testing Machine Steel Bars Forward and Reverse Planar Bending Tester Steel Bar Bending Test Equipment Lab from china suppliers

Type : Testing Machine

Accuracy Class : High Accuracy

Accuracy : ----

Brand Name : LONROY

Place of Origin : Guangdong, China

Application : Auto Testing, Laboratory Testing, Lab Testing

customized support : OEM, ODM, OBM

power : 1.5 kW

Protection Class : Ip56

Voltage : 380 V

warranty : 1 Year

Motor power : 1.5 kW

Machine dimensions : 1200*1000*960 mm

Machine Weight : 1600 kg

Power supply : Three-phase 380 V, 1.5 kW

MOQ : 1

Contact Now

Rebar Bending Testing Machine Steel Bars Forward and Reverse Planar Bending Tester Steel Bar Bending Test Equipment

Product Description

Product Description

The rebar bending testing machine is a specialized equipment for performing forward and reverse planar bending tests on steel bars. The technical parameters and specifications of this equipment comply with the relevant provisions of GB/T1499.2-2007 "Steel for Reinforced Concrete - Part 2: Hot-rolled Ribbed Steel Bars" and YB/T5126-2003 "Test Methods for Bending and Reverse Bending of Steel Bars for Reinforced Concrete". It is widely used in metallurgy, machinery manufacturing, construction, engineering supervision, and technical quality supervision units.

This product features significant improvements in accessory matching, safety limit switches, replacement of wear parts, and extending the overall service life of the machine.

WRebar Bending Testing Machine Steel Bars Forward and Reverse Planar Bending Tester Steel Bar Bending Test Equipment

Technical Specification

Rebar bending diameter range	Φ6–40 mm
Forward bending angle	0°–180° (arbitrarily set)
Reverse bending angle	0°–25° (arbitrarily set)
Working disc rotation speed	≤3.7 r/min
Roller center distance	165 mm
Working disc diameter	Φ580 mm
Motor power	1.5 kW
Standard bending die set	Included
Machine dimensions	1200×1000×960 mm
Machine weight	1600 kg
Power supply	Three-phase 380 V, 1.5 kW
