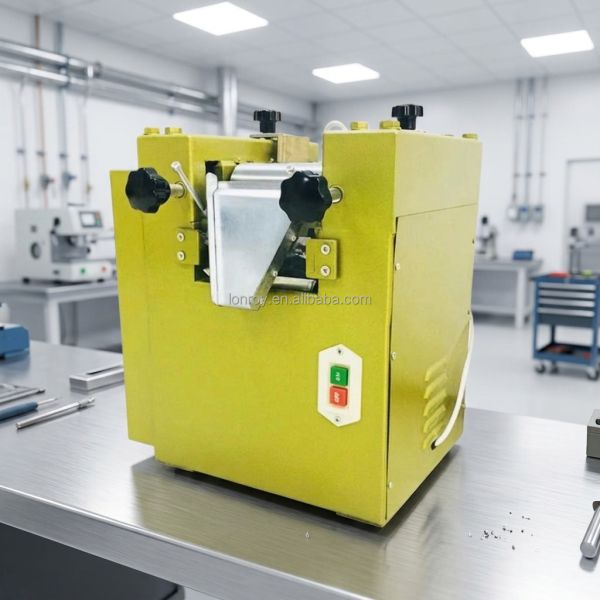

Three-roll Grinder Triple Grinding Machine Laboratory Three Roll Mill High Efficiency Three Roller Mill Three Roll Refiner

Name: Threeroll Grinder Triple Grinding Machine Laboratory Three Roll Mill High Efficiency Three Roller Mill Three Roll Refiner
Brand: LONROY
Price: 1 USD

Wholesale Three-roll Grinder Triple Grinding Machine Laboratory Three Roll Mill High Efficiency Three Roller Mill Three Roll Refiner from china suppliers

Type : Testing Machine

Accuracy Class : High Accuracy

Accuracy : ----

Brand Name : LONROY

Place of Origin : Guangdong, China

Application : Auto Testing, Laboratory Testing, Lab Testing

customized support : OEM, ODM, OBM

power : ---

Protection Class : Ip56

Voltage : 220 V

warranty : 1 Year

Equipment size : 440*420*400mm

Weight : 60kg

MOQ : 1

Contact Now

Three-roll Grinder Triple Grinding Machine Laboratory Three Roll Mill High Efficiency Three Roller Mill Three Roll Refiner

Product Introduction

The three-roll grinding machine is mainly used for various paints, inks, pigments, plastics and other pastes. Especially for products with high viscosity and fine particle size requirements. This machine achieves the grinding effect through the mutual squeezing of the surfaces of the three horizontal rollers and the friction at different speeds.

Three-roll Grinder Triple Grinding Machine Laboratory Three Roll Mill High Efficiency Three Roller Mill Three Roll Refiner

Technical Specification

Model			S65	S100	S150	S200	S260		S315	SM405	SM405 longer
Roller diameter		mm	Ø 65	Ø 100	Ø 150	Ø 200	Ø 260		Ø 315	Ø 405	Ø 405
Roller work length		mm	125	250	300	500	695		755	810	1000
Roller rotate speed	Slow	Rotate/minute	32	28	28	19	19		19	15	15
	Middle speed	Rotate/minute	89	72	66	55	55		55	45	45
	Fast speed	Rotate/minute	250	185	152	155	155		155	135	135
motor power		kw	0.75	1.1	2.2	4	7.5		11	15	22
Granularity		u.m	3-18/3times
Efficiency		kg/h	5	30	60	100		180	250	350	430
Outside size		mm	440×420×400	680×600×700	820×800×920	1180×1120×980		1650×1350×1100	1720×1550×1180	2100×1950×1350	2290×1950×1350
Weight		kg	60	240	400	560		1850	2300	5000	5000
